Meat Processing

Automatic Meat Forming Machine

Automatic burger former for producing burgers, meat patties, chicken nuggets and other food products in different shapes

The automatic meat forming machine completes filling, forming, and discharge in a fully automated process, producing a wide range of products such as hamburger patties, chicken nuggets, fish cakes, pumpkin pies, kebabs, and more. It is an ideal forming solution for fast-food plants, distribution centers, and food processing factories handling both meat and vegetable mixtures.

Designed for reliability and cost-effectiveness, the forming machine delivers consistent shape and weight across various fillings, including chicken nuggets, sandwich fillings, and vegetable mixes for spring rolls. Molds that can be easily changed allow customization of multiple shapes such as round, oval, comma-shaped, bowl-shaped, and others, supporting flexible product development.

Applications
    1. Chicken nuggets
      Chicken nuggets
    1. Hamburger pattiesHamburger patties
    1. Star-shaped chicken nuggets / Pumpkin patties
      Star-shaped chicken nuggets / Pumpkin patties
    1. Onion ringsOnion rings

Molds can be customized to produce products in various shapes as required.

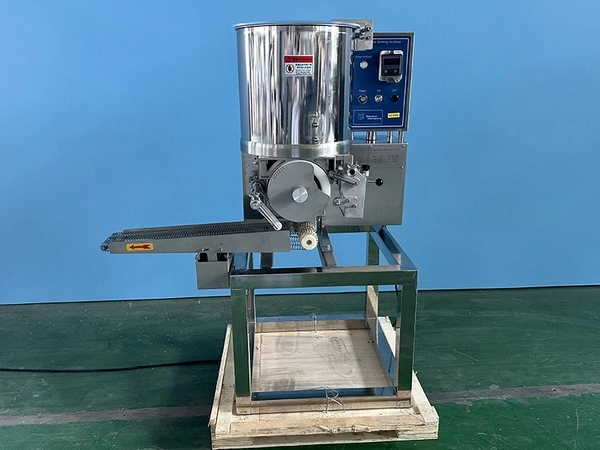

Burger Patty Forming Machine (100mm Belt Width)
Burger Patty Forming Machine (100mm Belt Width)
  • Burger Patty Forming Machine (100mm Belt Width)
  • Burger Patty Forming Machine (100mm Belt Width)
  • Burger Patty Forming Machine (100mm Belt Width)
  • Burger Patty Forming Machine (100mm Belt Width)
  • Burger Patty Forming Machine (100mm Belt Width)
  • Burger Patty Forming Machine (100mm Belt Width)
Model HF 100
Production capacity 2100 pc/h
Tank capacity 32 L
Patty diameter 100 mm
Patty thickness 6-18 mm (can be adjusted)
Power 0.55 kW
Power supply 380V / 50Hz
Weight 100 kg
Dimension 860 × 600 × 1400 mm
Inquiry

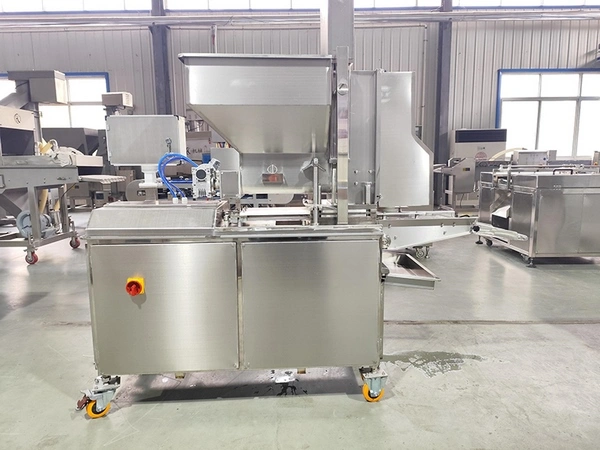

Burger Patty Forming Machine (240mm Belt Width)
Burger Patty Forming Machine (240mm Belt Width)
  • Burger Patty Forming Machine (240mm Belt Width)
  • Burger Patty Forming Machine (240mm Belt Width)
  • Burger Patty Forming Machine (240mm Belt Width)
  • Burger Patty Forming Machine (240mm Belt Width)
  • Burger Patty Forming Machine (240mm Belt Width)
  • Burger Patty Forming Machine (240mm Belt Width)
Model HKCX240-Ⅲ
Input voltage 380V / 50Hz
Installed power 0.2 kW
Conveyor belt width 240 mm
Belt speed 3-15 m/min
Working frequency 25-35 cycles/min
Compressed air 1.2 m³/min
Filling area 200 × 140 mm
Outfeed height 700-850 mm
Dimension 2100 × 600 × 1750 mm
Inquiry

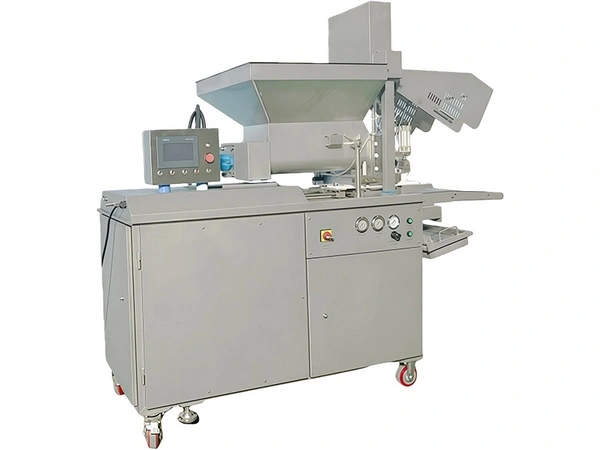

Burger Patty Forming Machine (300mm Belt Width)
Burger Patty Forming Machine (300mm Belt Width)
  • Burger Patty Forming Machine (300mm Belt Width)
  • Burger Patty Forming Machine (300mm Belt Width)
  • Burger Patty Forming Machine (300mm Belt Width)
  • Burger Patty Forming Machine (300mm Belt Width)
Model HKCX300-Ⅲ
Input voltage 380 V/ 50 HZ
Installed power 7.72 kW
Conveyor belt width 300 mm
Belt speed 3-15 m/min
Working frequency 25-50 cycles/min
Filling area 260 × 150 mm
Outfeed height 800-1100 mm
Dimensions 3300 × 800 × 2390 mm
Inquiry

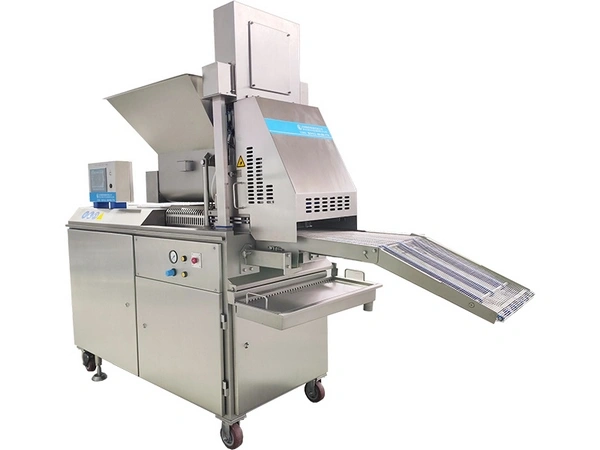

Burger Patty Forming Machine (400mm Belt Width)
Burger Patty Forming Machine (400mm Belt Width)
  • Burger Patty Forming Machine (400mm Belt Width)
  • Burger Patty Forming Machine (400mm Belt Width)
  • Burger Patty Forming Machine (400mm Belt Width)
  • Burger Patty Forming Machine (400mm Belt Width)
Model HKF-400
Belt width 400 mm
Air pressure 6 bar
Water pressure 2 bar
Installed power 11.12 kW
Production capacity 400-800 kg/h
Product thickness 6-25 mm
Weight accuracy ≤1%
Max diameter 135 mm
Filling pressure 3-15 MPa (adjustable)
Dimensions 2828 × 830 × 2136 mm
Inquiry

Get in Touch

Tell us your requirements and we will respond as soon as possible.

  • Other Meat Processing Equipment
  • Meat Processing Lines
  • Meat Coating Equipment
    Meat Coating Equipment
  • Sausage Making Equipment
    Sausage Making Equipment
  • Auxiliary Equipment
    Auxiliary Equipment
  • Meat Cutting Equipment
    Meat Cutting Equipment
  • Meat Marinating & Mixing Equipment
    Meat Marinating & Mixing Equipment
  • Multifunctional Fresh Meat Cutting Line
    Multifunctional Fresh Meat Cutting Line
  • Automatic Boneless Meat Dicing Line
    Automatic Boneless Meat Dicing Line
  • Automatic Sausage Filling & Linking Line
    Automatic Sausage Filling & Linking Line
  • Automatic Meat Forming, Battering & Breading Line
    Automatic Meat Forming, Battering & Breading Line

Applications

  • Beef Processing
    Beef Processing
  • Mutton Processing
    Mutton Processing
  • Chicken Processing
    Chicken Processing
  • Duck Processing
    Duck Processing
  • Seafood Processing
    Seafood Processing
Which forming machine is suitable for small, medium, and large meat-patty processing plants?
  • Small-scale processors typically choose the burger patty forming machine with 100 mm belt width (2,100 pcs/hour, 6-18 mm thickness).
  • Medium-scale plants use the burger patty forming machine with 240 mm belt width (belt speed 3–15 m/min, 25–35 cycles/min).
  • Large-scale plants require the burger patty forming machine with 400 mm belt width (400–800 kg/h, 6–25 mm thickness).
  • All models automatically complete filling, forming, and discharge.
Which forming machine is recommended for distribution centers that require adjustable patty thickness and stable forming performance?

The burger patty forming machine with 300 mm belt width is recommended. It features a 45 L hopper and completes filling, forming, coating, and discharge at 15-34 cycles/min. Patty thickness is adjustable from 6–35 mm, suitable for operations needing flexibility.
