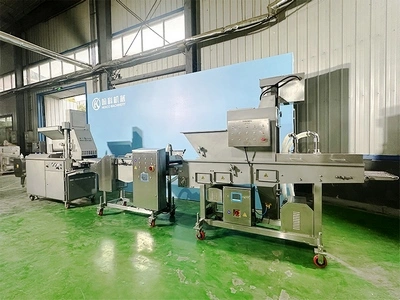

Automatic Meat Forming, Battering & Breading Line

Meat Forming Equipment → Battering Machine → Breading Machine

Automatic meat forming, battering and breading line can handle filling, forming, and discharging in a fully automated process. It produces meat patties in various shapes, suitable for a wide range of raw materials such as fish, beef, pork, chicken, and vegetables. By changing molds, it can form patties into different shapes including round, square, oval, triangular, heart-shaped, and more.

Request a Quote
Applications
    • Applications
      Chicken Nuggets
    • Applications
      Onion Rings
    • ApplicationsBurger Patties

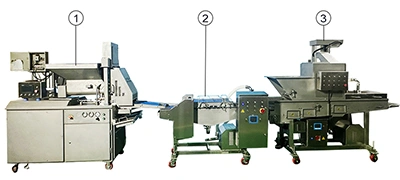

Equipment Used in the Meat Processing Line
  • Forming Machine
  • Battering Machine
  • Breading Machine
Multifunctional Fresh Meat Cutting Line

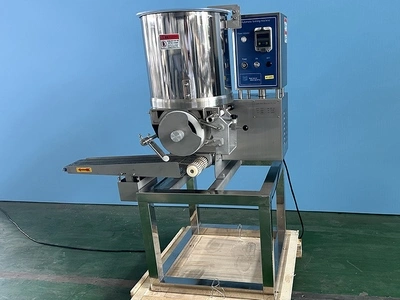

Forming Machine Specifications

Forming Equipment
Inquiry Details
Output 15–34 cycles/min
Hopper capacity 45 L
Power 0.12 kW
Conveyor width 200-230 mm
Mold width 240 mm
Power supply (customizable) 380 V, 50 Hz
Product thickness 6-35 mm
Feeding method Twin-screw feeder
Production capacity 70-180 kg
Product filling range 180 × 140 mm (W × H)
Max product diameter ≤140 mm
Dimensions 2150 × 650 × 1650 mm

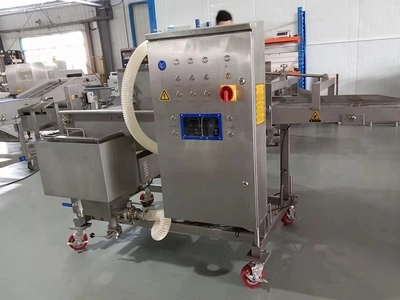

Battering Machine Specifications

Battering Machine
Model HKLJJ600
Conveyor width 600 mm
Conveyor speed 3-15 m/min
Infeed/outfeed height 950 ± 50 mm
Rated power 2.65 kW
Dimensions 2080 × 1200 × 1450 mm
Inquiry Details

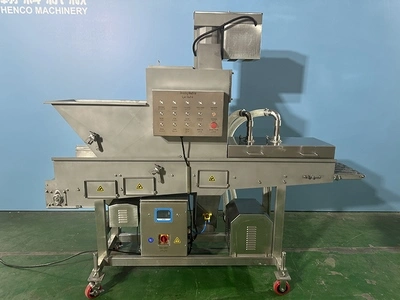

Breading Machine Specifications

Breading Machine
Model HKSK600
Conveyor speed 3-18 m/min
Infeed height 870-970 mm
Outfeed height 1000 ± 50 mm
Power 3.7 kW
Conveyor width 600 mm
Dimensions 2640 × 1060 × 2240 mm
Inquiry Details
Features
    • Features

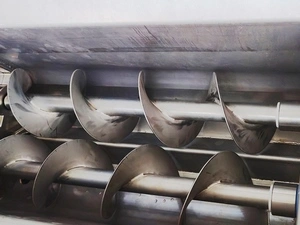

      Feeding inlet For low-flow materials such as minced meat or dough, twin-screw augers ensure uniform and continuous feeding, preventing material blockage or accumulation.
    • Features

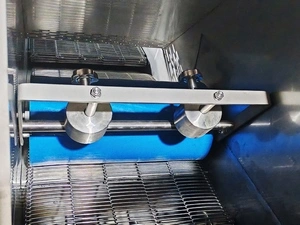

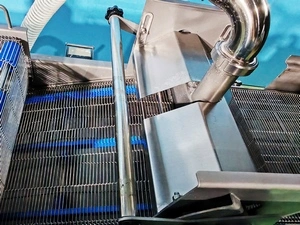

      Battering machine Splash guard installed at the feeding edge prevent batter splashing during loading.
    • Features
      Construction All machines are made of food-grade 304 stainless steel, providing corrosion resistance, compliance with food hygiene standards, and easy cleaning.
