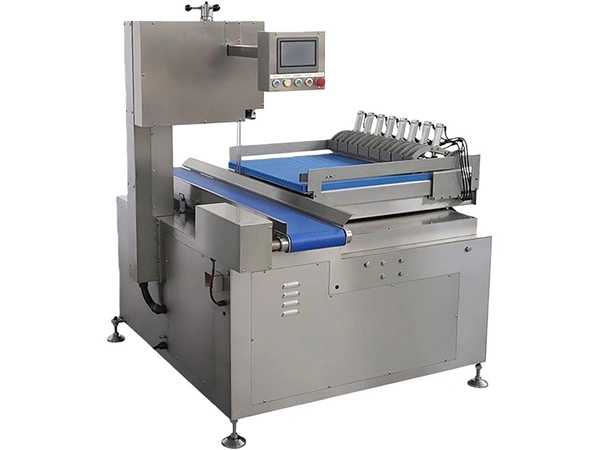

Automatic Meat Band Saw

Meat Processing

Bone-in meat cutter for the automatic cutting of fresh and frozen bone-in meat

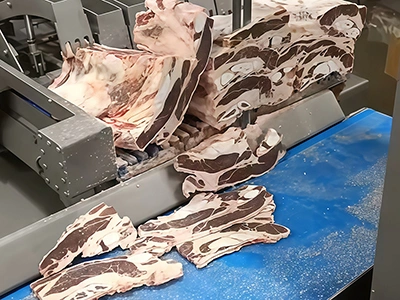

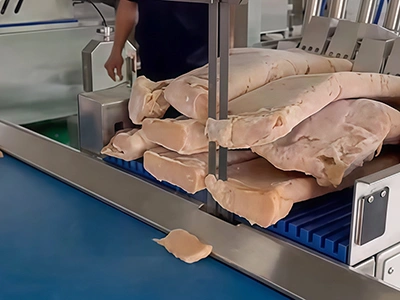

The automatic meat band saw is suitable for cutting various types of bones, including livestock bones (such as beef and lamb), poultry bones (such as chicken and duck), seafood bones (such as fish bones), and frozen meat.

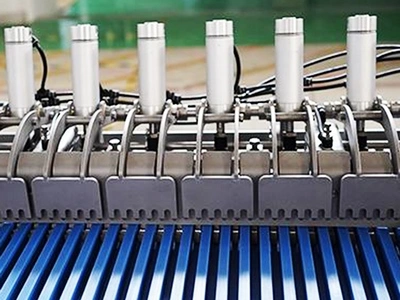

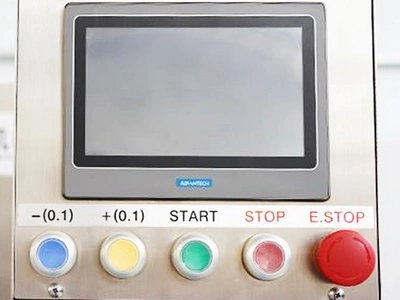

With the conveyor belt’s automatic alignment function, food materials do not require manual adjustment after placement; the machine automatically aligns the cutting path, making it especially suitable for standardized production during large-scale processing. Based on sensory data, the intelligent saw can optimize cutting parameters through a digital control system, perform automatic cutting, free operators’ hands, and reduce labor costs.

Request a Quote

Applications

Key Parameters

Model	HKJZ
Worktable size	650 mm × 530 mm
Dimensional accuracy	0.1 mm
Max cutting thickness	100 mm
Saw blade line speed	32 m/s
Saw blade specification	3335 mm × 2 blades (length × quantity)
Power supply	Three-phase five-wire, 380V
Equipment power	4.8 kW
Cutting motor power:	3 kW
X-axis motor power	0.75 kW
Y-axis motor power	0.75 kW
Conveyor motor power	0.3 kW
Air pressure	0.6 MPa
Dimensions	1750 × 1550 × 1850 mm

Features

Which meat cutting equipment is recommended for frozen-meat processors of different scales (small, small-to-medium, medium)?

Small frozen-meat processors: Frozen meat slicer & portion cutter is recommended for small-batch slicing and portioning (15–457 cuts/min).
Small-to-medium frozen meat-slice processors: A frozen meat slicing machine is suitable, offering stable compression without slippage and 35–65 cuts/min throughput.
Large frozen-meat roll processors: A frozen meat flaker is ideal, built in SUS304 stainless steel with 3T/h capacity and adjustable slice sizes of 6/20/35 mm.

Which equipment should be used when producing sausage/ham products that require frozen meat to be broken into chunks or mince without fully thawing?

A frozen meat block breaker is recommended. It uses six blade groups to break partially frozen meat directly, delivering 5–6T/h capacity, ideal for pre-processing ham and sausage formulations.

Which machine is suitable for producing shaped chicken cutlets (heart-shaped, star-shaped, etc.) requiring non-stick slicing, even thickness, and adjustable slice settings?

A fresh meat slicing machine is the best choice. It produces clean, non-sticky slices with uniform thickness and neatly separated pieces, making it suitable for supermarket fresh-meat counters and prepared-food lines.

Which bone saw should be selected for different use environments, from farms and slaughterhouses to large modern meat-processing plants?

Farms and slaughterhouses: The Model 280 bone band saw is suitable (1.1 kW power, 200×280 mm cutting size, table with measurement scale).
Large food processing plants: The Model 380 bone band saw is recommended (1.5 kW power, 1500 m/min blade speed, 300×380 mm cutting window).
Large modern industrial processors: An automatic meat band saw is ideal, featuring 30 memory programs and a 32 m/s blade line speed for high-throughput precision cutting.

What equipment should large meat-processing plants choose when they need high-efficiency, intelligent cutting that produces uniform blocks in a single pass?

An intelligent portion cutter is recommended. It uses laser measurement combined with smart sensors and algorithm-based control to ensure each piece matches the target thickness, weight, and shape. Suitable for beef, pork, lamb, poultry, seafood, cheese, and cooked or ≥-2°C fresh products.
