Sausage Hanging Machine

Meat Processing

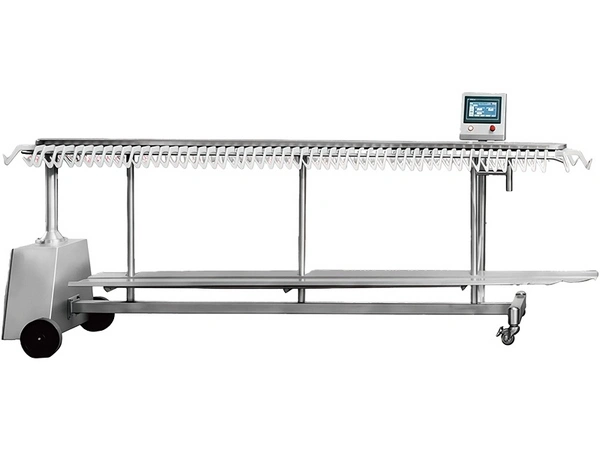

Sausage machine for automatic hanging of sausage loops

The sausage hanging machine is built from SUS304 stainless steel and consists of a high-speed fixed-length controller and an automatic hanging module. The hanging machine is driven by a servo motor, ensuring precise and reliable operation.

Request a Quote

Key Parameters

Model	HK-2300
Power	1.5 kW
Max hanging length	400 cm
Belt length	180 mm
Power supply	Single-phase 220 V, 50 Hz
Weight	160 kg
Dimensions	2700 × 650 × 1150 mm

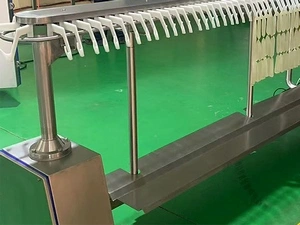

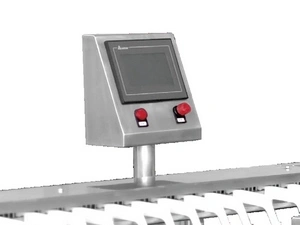

Features

Do sausage processing plants need to purchase equipment for every stage from filling to sealing, and can Henco provide one-stop service?

Yes. Henco provides a one-stop solution covering the full processing workflow from filling to sealing.

For the filling stage, we offer the sausage filler, made of 304 stainless steel, featuring a filling range of 4–999 g ±2 g and a 240 L large feeding inlet.
For the hanging stage, we supply the sausage hanging machine, equipped with servo-driven operation and capable of handling a maximum hanging length of 400 cm.
For cutting and segmenting, we recommend the sausage link cutting machine, designed to cut and separate twisted sausage links with a capacity of 1150 cycles per minute, and featuring an easily disassembled blade box for convenient cleaning.
For the sealing stage, we provide the clipping machine, equipped with a complete set of clip molds and a sealing speed of 80 clips per minute, ensuring reliable and consistent sealing performance.
