Sausage Clipping Machine
  • Sausage Clipping Machine
  • Sausage Clipping Machine
  • Sausage Clipping Machine
  • Sausage Clipping Machine
Meat Processing

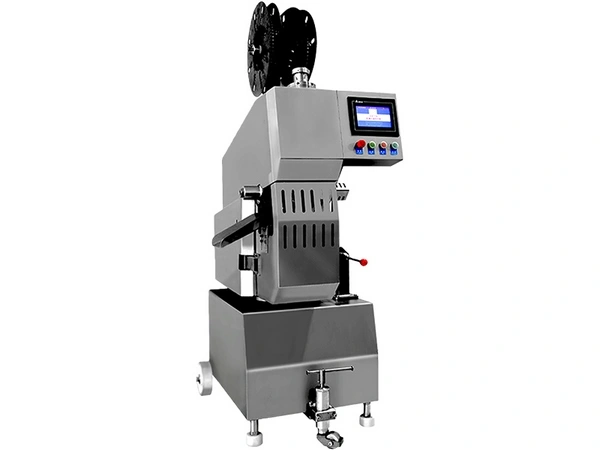

Sausage Clipping Machine

Automatic double clipper for simultaneous sealing of both ends of sausage casing

The sausage clipping machine uses double clipping system to complete the sealing process. Its core mechanism applies clips to both ends simultaneously, ensuring efficient and precise closure.

The sausage clipping machine is suitable for end-sealing and closure operations for various meat products such as ham sausages, pork sausages, chicken sausages, and fish sausages. The double clipping system completes sealing at both ends, and interchangeable tooling allows compatibility with multiple casing sizes and product shapes. The machine can also be integrated with corresponding upstream and downstream equipment.

Request a Quote
    1. Pork sausagesPork sausages
    1. Chicken sausagesChicken sausages
    1. Fish sausagesFish sausages
Key Parameters
Model HK-160
Clipping speed 80 clips/min
Casing size range Fold diameter 32-130 mm Product diameter 20-85mm
Air pressure 0.5-0.7 MPa
Power 2.7 kW
Voltage 220 V
Weight 420 kg
Dimensions 1150 × 740 × 1580 mm
Features
    1. Features

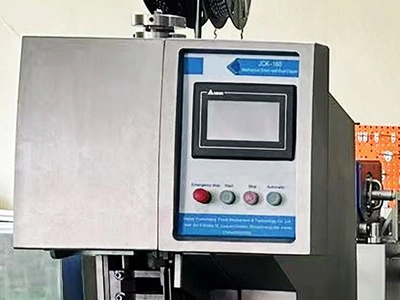

      Control panel

      Digital control interface enabling precise adjustment of clip length, width, and other parameters based on production requirements.

    1. Features

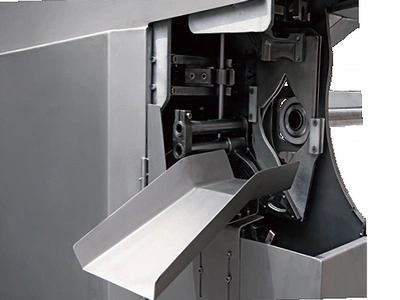

      Infeed and discharge ports

      Large-diameter inlet and outlet designed for smooth product transfer without jamming or blockage.

    1. Features

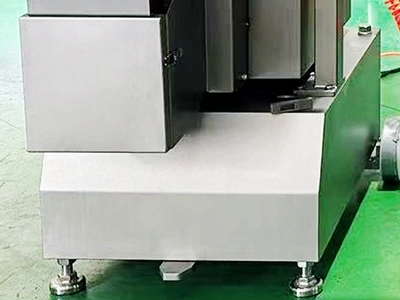

      Material construction

      Built from 304 stainless steel, offering easy cleaning, high durability, and reliable food-grade safety.

Related Machines
  • Vacuum Sausage Filler
    Vacuum Sausage Filler
  • Sausage Hanging Machine
    Sausage Hanging Machine
  • Sausage Link Cutting Machine
    Sausage Link Cutting Machine
  • Smokehouse Oven
    Smokehouse Oven
  • Sausage Clipping Machine
    Sausage Clipping Machine

Get in Touch

Tell us your requirements and we will respond as soon as possible.

  • Other Meat Processing Equipment
  • Meat Processing Lines
  • Auxiliary Equipment
    Auxiliary Equipment
  • Meat Cutting Equipment
    Meat Cutting Equipment
  • Meat Marinating & Mixing Equipment
    Meat Marinating & Mixing Equipment
  • Meat Forming Equipment
    Meat Forming Equipment
  • Meat Coating Equipment
    Meat Coating Equipment
  • Multifunctional Fresh Meat Cutting Line
    Multifunctional Fresh Meat Cutting Line
  • Automatic Boneless Meat Dicing Line
    Automatic Boneless Meat Dicing Line
  • Automatic Sausage Filling & Linking Line
    Automatic Sausage Filling & Linking Line
  • Automatic Meat Forming, Battering & Breading Line
    Automatic Meat Forming, Battering & Breading Line

Applications

  • Beef Processing
    Beef Processing
  • Mutton Processing
    Mutton Processing
  • Chicken Processing
    Chicken Processing
  • Duck Processing
    Duck Processing
  • Seafood Processing
    Seafood Processing
Do sausage processing plants need to purchase equipment for every stage from filling to sealing, and can Henco provide one-stop service?

Yes. Henco provides a one-stop solution covering the full processing workflow from filling to sealing.

  • For the filling stage, we offer the sausage filler, made of 304 stainless steel, featuring a filling range of 4–999 g ±2 g and a 240 L large feeding inlet.
  • For the hanging stage, we supply the sausage hanging machine, equipped with servo-driven operation and capable of handling a maximum hanging length of 400 cm.
  • For cutting and segmenting, we recommend the sausage link cutting machine, designed to cut and separate twisted sausage links with a capacity of 1150 cycles per minute, and featuring an easily disassembled blade box for convenient cleaning.
  • For the sealing stage, we provide the clipping machine, equipped with a complete set of clip molds and a sealing speed of 80 clips per minute, ensuring reliable and consistent sealing performance.
